主要技術規格(軟管起重機)
型號 |
安全負載 (t) |
工作半徑 (m) |
起升速度(m/min) |
空載回轉速度(r/min) |
變幅時間(s) |
起升高度(m) |
回轉角度(°) |
系統工作壓力(MPa) |
配置功率(KW) |
YBQ0.5 |
0.5 |
2.6~18 |
0~15 |
0~1.0 |
≤50 |
-5~12 |
360 |
20 |
5.5 |
YBQ1 |
1.0 |
4.5~20 |
0~10 |
0~0.6 |
≤80 |
-5~20 |
360 |
20 |
11.0 |
YBQ2 |
2.0 |
4.5~20 |
0~10 |
0~0.6 |
≤80 |
-5~22 |
360 |
20 |
15.0 |
YBQ3 |
3.0 |
5.5~20 |
0~10 |
0~0.6 |
≤80 |
-5~22 |
360 |
20 |
22.0 |
YBQ5 |
5.0 |
5.8~20 |
0~8 |
0~0.5 |
≤90 |
-5~22 |
360 |
20 |
30.0 |
YBQ7 |
7.0 |
6~20 |
0~8 |
0~0.5 |
≤90 |
-5~22 |
360 |
20 |
30.0 |
YBQ8 |
8.0 |
6~23 |
0~8 |
0~0.6 |
≤90 |
-5~20 |
360 |
20 |
30.0 |
說明:此(ci)表參(can)數為常(chang)規配置(zhi),根(gen)據(ju)用戶實(shi)際工況(kuang),可重新設計。
技術說明:
Specification:
● 起重量:0.5t~10t
Lifting capacity: 0.5t~10t
● 該機型采用全液壓驅動和油缸變幅,可無級調速。可采用電液控制或手動控制,可360度全回轉。
The crane adopts the hydraulic drive and cylinder-luffing system to realize the stepless speed regulating. It can also be operated electro-hydraulicly or manually. The swing is 360 degrees.
● 該機型有結構緊湊,運轉平穩,使用操作方便,安全可靠等特點。
The crane has the advantages of compact structure, smoothness and convenient operation, safety and reliability.
● 也可據用戶要求配置為遙控操作,遙控距離為100米。整機防爆等級為ExedⅡBT4,防護等級IP56。根據用戶要求設計,使該機符合實際工況。
According to customers’ requirement, we can design the remote operation version with 100m distance. The explosion class of the crane is ExedIIBT4, while the protection is IP56. It is designed specially for certain customers in order to meet practical requirement.

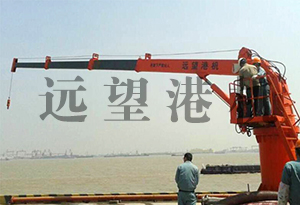

● 該機型可安裝在油碼頭、化工碼頭等,用于起吊液體軟管或其他危險品。也可安裝在各種油輪、化學品船、LPG(液化石油氣)/LNG(液化天然氣)等特殊船舶上,可用于起吊軟管、貨物、補給品等各類零星物品。
The crane apply to the oil wharf \ liquid chemical wharf for hoisting hoses or other dangerous goods. It is also designed specially for various special ships, such as oil tanker, chemical tanker, LPG carrier, LNG carrier etc. to hoist hoses, materials, supplies, etc.
